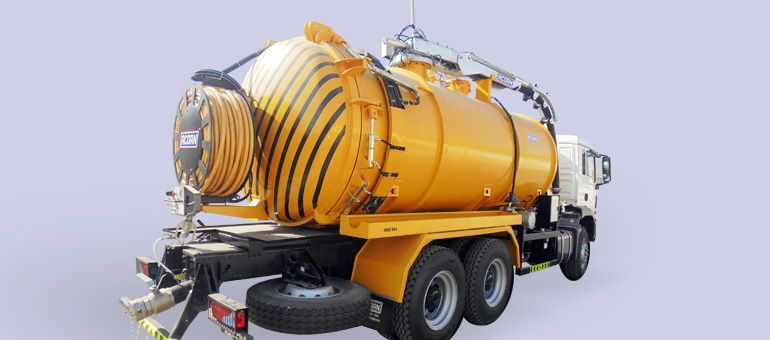

Jetting Tankers

Jetting Tankers

  • Capacity : Up to 20,000 Liters
  • Compartment : Two – One for Sewage water / Oil mud / Sludge + One for fresh water
  • Application : For suction and transport of Sewage water, Oil mud as well as for high pressure cleaning
  • Shape : Cylindrical with outer rings for stiffening
  • Construction : All welded steel construction - Steel - SA 36/ST 52-3/Equivalent steel
  • Electricals : 7 pin - 24V – Side lights, Reflectors, Reverse lights
  • Pump : High pressure pump for jetting – Driven by gear box of the truck through splitter box
    • PTO driven vacuum pump
    • Hydraulic system with oil cooler and fan
  • Hose Reel : One hydraulically operated hose reel at rear door of the tank for high pressure cleaning
  • Additional self align main jetting reel : Hose reel end provided with set of nozzles to take care of various debris
  • Door : Hydraulically operated – From Dished plate – With leak resistant sealing gasket
    • Absolutely tight and pressure/vacuum proofed – Provision of greasing for clamp lubrication
  • Safety Equipment : Pressure & Vacuum relief valve – To control pressure and vacuum inside tank
    • High – Low level auto cut off – To prevent dry running of jetting pump
    • Combination gauge – Showing pressure and vacuum inside tank
  • Accessories : Level Indicator – Slight glass – Showing level of content inside tank
    • Optional 20” inspection man way
    • Spare wheel carrier to accommodate spare tire
    • Side & Rear anti run bumper
    • Mudguards & Mud flaps
    • Tool box & GRP Water tank
    • Hose box with fill & discharge hoses – On either side of the tank
  • Finish : Internal A. Grit blasting – SA 2.5
    • B. Epoxy / Coal tar coating – Two coats
  • External A. Grit blasting - SA 2.5
    • B. Epoxy primer followed by two coat of paint
