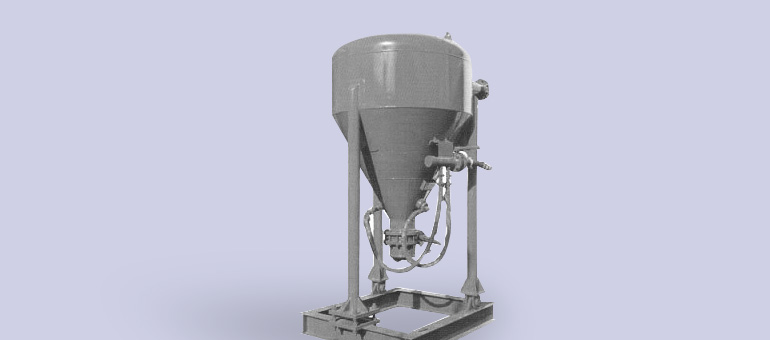

- Capacity
: 300 - 500 CFT - Type
: U-stamp, Non U-stamp - Application
: Cement, Barite, Bentonite,etc - Construction
: Steel - SA 36, 516 Gr.70, ST 52-3, Equivalent steel Pipe lines : Fill / Vent / Discharge line – Terminated with Valves & Hammering unions/Customized- Man ways : At bottom – For easy accessibility
- Testing/Inspection : Tank weld joints – MPI / Radiography – As per client requirements
- Lifting lugs - Load test – MPI testing - Certified for empty lift - Witnessed by qualified third party
- Hydro test – As per working pressure – Witnessed by qualified third party
- Accessories : Hopper at top with cutting blades
- Pressure relief valve
- Pressure gauge
- Provision for mounting compression load cell
- External Finish : Grit blasting followed by three coat paint system
