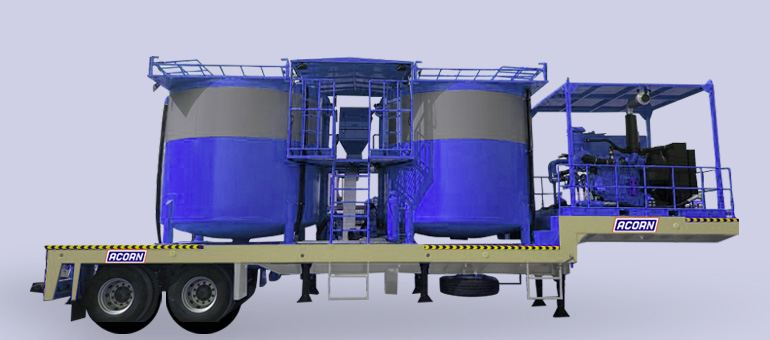

Batch Mixer

Batch Mixer

  • Capacity : 2X50 BBL – 2X60 BBL – 2X75 BBL – 2X100 BBL
  • Type : Skid or Trailer mounted
  • Application : Uniform cement slurry blending, Mixing of slurries and other chemicals
    • Suitable for Slurry, HCL (Up to 32% concentration) and other chemicals.
  • Engine : Engine package is mounted on vibration isolators
    • Diesel operated – 300-350 HP - Controlled electronically – Caterpillar / Detroit / Other options
  • Gear box : Funk / Other options
  • Hydraulic Pump : Two numbers – Driven by hydraulic motors – Parker Denison / Other options
  • Centrifugal Pump : Two numbers – 6 X 5 X 11 – Hydraulically driven
  • Agitator : One number per tank – Driven by hydraulic motor – Poclain / Other options
  • Valves : PTFE coated valve for acid application / Optional actuator operated
  • Man ways : One number on each tank – Hinged type
  • Level Indicator : Engraved level indicator on each tank
  • Construction : Two number of tanks – Skid or Trailer mounted : Steel - SA 36, 516 Gr.70, ST 52-3, Equivalent steel
  • Skid : Heavy duty – Top lifting hooks - Optional DNV certified – 2.7.1
  • Trailer : Axle – 2X12/15 Ton – Mechanical suspension – Under slung
    • Tires – 315/80 R 22.5 – Selection depend on load/terrain condition
    • Brake – Two line air brake system, Spring assisted brakes
  • Internal Coating : Epoxy primer, Coal tar epoxy for Slurry application
    • Derakane (411-45 or 470-300) or Rubber lining for HCL and other highly corrosive chemicals
  • External Finish : Grit blasting followed by three coat paint system
